File Distribution Efficiencies:
cfengine versus rsync
Abstract
This papers reports on a preliminary investigation of the performance of cfengine and rsync for file distribution for the purposes of system maintenance. It focuses on two aspects of file distribution. Those being the transfer during an initial copy from a master server to a client and the file verification of the client's files against the server's files. It is shown that for larger file transfers rsync performs better, while cfengine manages smaller transfers better.
Introduction
In originally implementing cfengine (v1.5.4) for host management on our network we ran across several problems with the file transfer protocol[smith]. Due to faults which would halt transfers mid-session we decided that a replacement method for synchronizing applications and configurations between the servers and individual nodes was needed. We did not, however, wish to completely get rid of cfengine, because we still found its other features for system immunization useful. As such, we implemented an rsync over SSH system controlled and run from each particular host's cfengine agent. While this has worked quite well, this kludge introduces some possible instabilities and quirks in operations.
As cfengine has matured many of the problems and bugs which we originally faced have been addressed. In reviewing our file synchronization method against current versions of cfengine we decided to more systematically test various copy methods available to see which was really most suitable for our needs. While there are several other file copying systems available, our testing is focused on cfengine and rsync and how various levels of securing the network affect transfer speeds.
Testing Methodology
The repository server was a Sun E450 (4 440MHz UltraSparc cpu's and 2gigs of ram) running Solaris 7. The clients being served in these tests were a Dell PowerEdge 2450 (2 700MHz PIII cpu's and 512megs of ram) running RedHat Linux 6.2 and a Sun Netra T1 (1 440MHz UltraSparc cpu and 1gig of ram) running Solaris 7. In all cases the machines were running near completely idle with only a minimum number of required processes running in order to obviate any possible interaction issues. All hosts ran 100mbit full-duplex Ethernet connected to a single switch isolated from the rest of our network to eliminate any possible networking issues. Each test run was done in a serial fashion so that only one client was communicating with the server at a given time.
The versions of the file transfer applications used at the time were
cfengine v1.6.3, rsync v2.3.1.
Cfengine was additionally patched so as to be able to directly call
any externally copy method desired by the user[patch].
A typical rsync incantation and similar cfengine configuration are shown
below for example purposes:
rsync -qrplogDze "ssh -l cfengine -i .identity -o StrictHostKeyChecking=no" server:/master/repository /local/destination copy: /master/repository dest=/local/destination mode=0444 secure=true recurse=inf server=$(cfd_master) ignore=CVS backup=false type=md5 purge=false
There were four (4) different copy configurations run with four (4) different sized transfers. The copy configurations were:
Results

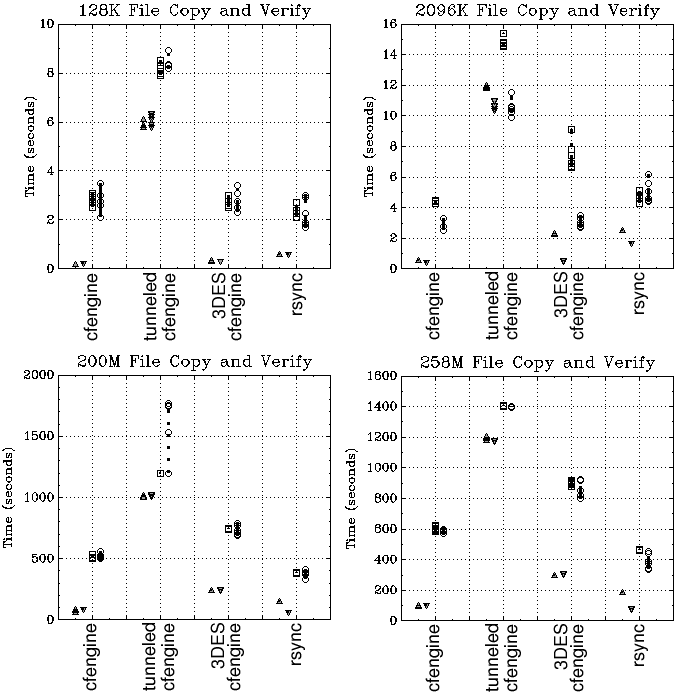

For the actual transfer of data the various methods order themselves out fairly evenly. While rsync ran as fast or faster than cfengine on Solaris, under Linux rsync was slower than both cfengine methods until the large transfers where rsync out-paced 3DES cfengine.
Cfengine tunneled over SSH performed poorly in all tests and showed itself to be a non-valid solution to the problem. This poor performance was due to the fact that communications between cfengine and SSH was through TCP Socket connections. This created more work for the OS's TCP stack since two sockets were opened on each machine (client and server) per connection. Beyond having a slow initialization and poor general performance, we also found in testing that setting up the tunnel was too brittle to be actually used in a production environment. This instability was attributed to the timings required from opening the tunnel and then initiating the cfengine communication through that tunnel. When this timing issue was most problematic was when cfengine would need to close and then open a new connect to a cfd server. If the SSH tunnel had not closed before the new cfengine connection was attempted, then a port conflict would arise and the new connection would fail.
What was more interesting was the comparison between rsync and 3DES cfengine since both used 3DES, from the same OpenSSL[SSL] library, for their cipher. Rsync did suffer in smaller transfers, mostly due to the initialization time required to handle the RSA authentication between hosts. 3DES Cfengine was slower for the large file transfers mostly due to the extra checks on the client side. The process cfengine used in a transfer was to write the incoming file to a temporary location and then verify that the file was successfully saved before copying it to its final destination on the local disk. It was only a slight increase in I/O utilization in comparison to rsync, but it did slow down the overall transfer process. Those extra checks ensured that the files arrived uncorrupted which was especially important for distributing critical binaries and data files.
|
|
|
|
For file verification, the RSA authentication used for rsync created an initial performance hit in opening the connection which dramatically affected results for smaller file sets. Rsync's checksum algorithm[tridgell] allowed it to best cfengine in the larger file set verifications even when cfengine was not encrypted. Part of this was due to the fact that much of the I/O and computational actions are off-loaded by rsync onto the server. With the server being unloaded and having considerably more power than the client, this was a definite plus in our test environment. But this would create scaling problems as demand on the server increased. What constitutes a large demand, though, was not within the scope of our testing. For its file verification, cfengine sent the server the MD5 checksum of its local file. The server then did a MD5 check of its file (which is cached) and responded with the results of the check. While this was a more simplified check than rsync's rolling CRC's, it was just as effective for file verification. The requirement of the client to handle much of the verification load was consistent with the general cfengine design philosophy of "smart client/dumb server" and allowed the server to scale to handle more client requests. This did put a slightly greater load on each individual client, although, nothing so significant as to generally hinder the client to perform its primary function.
Conclusions
The results of our tests are preliminary and come from only a single set of parameters. As such it is difficult to make any definitive conclusions, but we can see trends developing. It can been seen that rsync has advantages over cfengine for large file transport and verification. This is particularly the case where there are a large number of files which have frequent small changes that need to be kept synchronized. On the other hand, if you are interested in synchronizing a few megabytes worth of critical data, cfengine is a better choice. This is especially the case if you are going to use cfengine's other more interesting features to actually maintain the client hosts. The one advantage that rsync does have over cfengine, feature-wise, is the ability to use RSA authentication.
As cfengine evolves, the advantages of rsync for transport and verification of file sets may diminish. The cfengine protocol in the 2.0.x versions, still in the development stages, but already gets rid of the 4096byte block sizing issue and other transport efficiency issues. Additionally, RSA-style authentication is in the process of being implemented.
